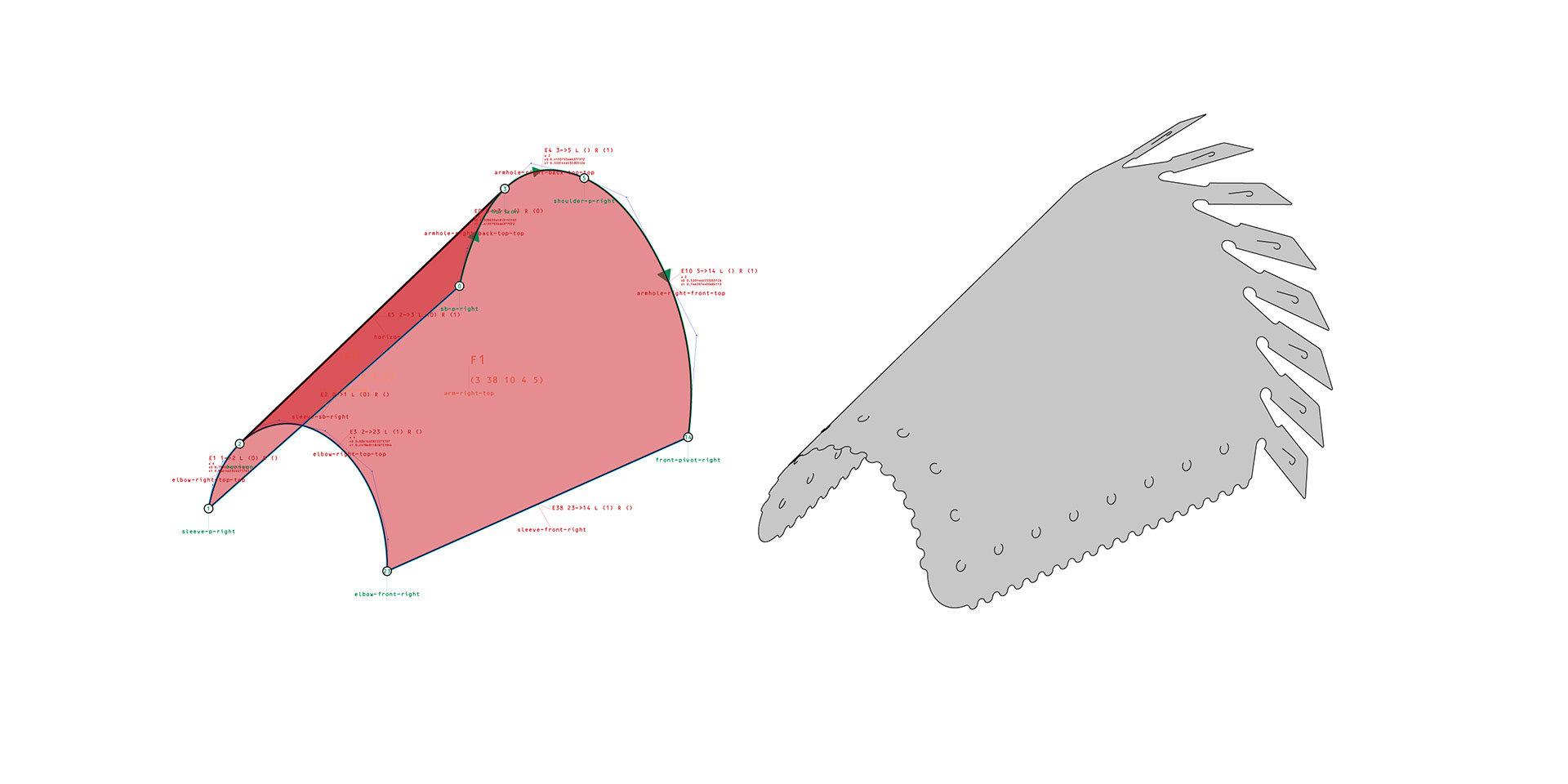

Assembly instructions are rendere as three dimensional vector drawings which are projected into two dimensions and saved as SVG files. Any piece of a curve network i.e. a pattern piece of a garment can be rendered separately or as a larger composition.
![](https://cdn.myportfolio.com/285bf9cb-7669-4ad6-a365-38460a3e5481/a3a63031-907b-4ae5-b0ce-7b2948506632_rw_1920.jpg?h=3d532861484e773189b4ed7f9240e3ec)

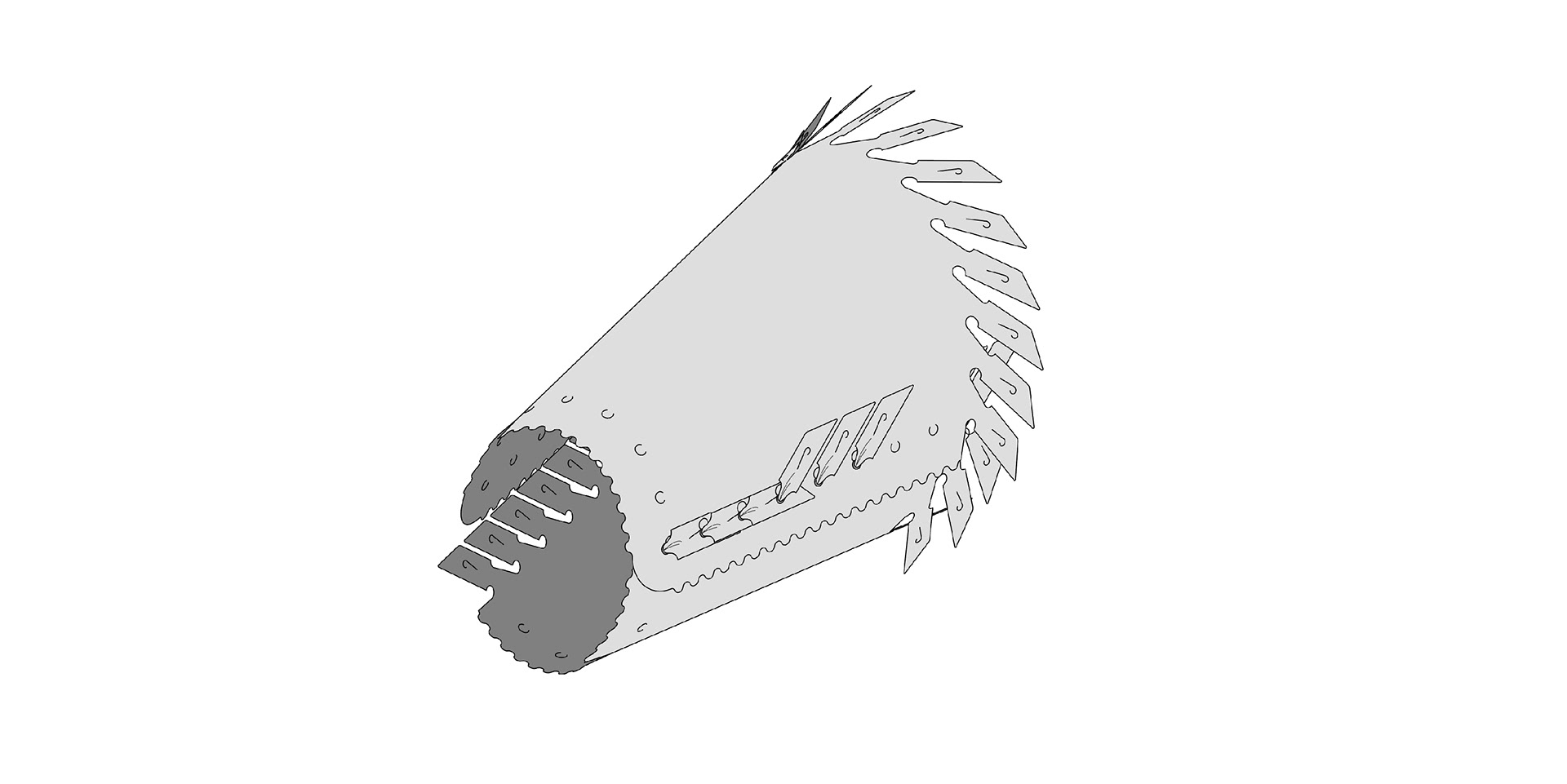

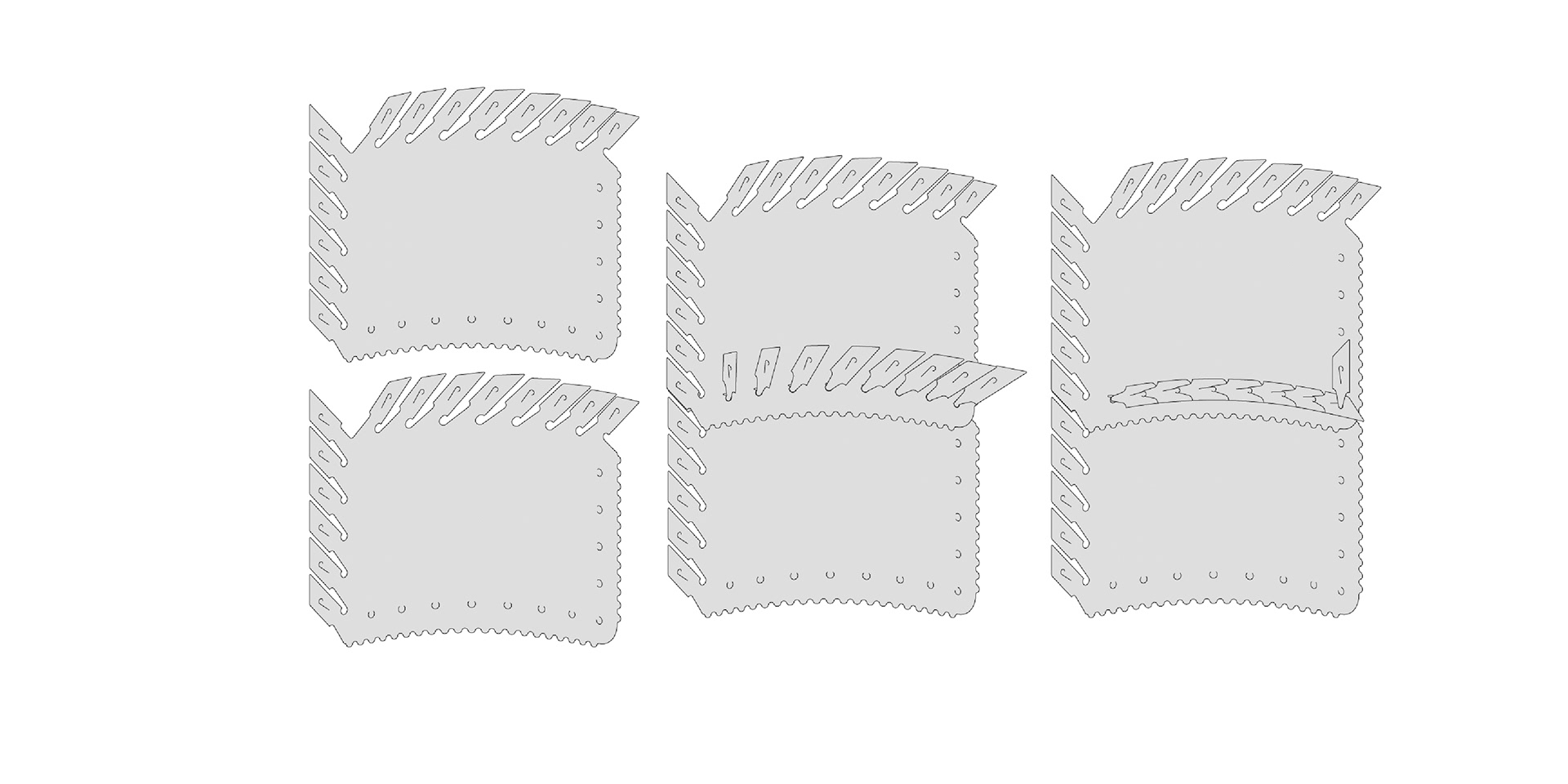

Each seam connectivity element can be rendered in a different state - either detached, looped or closed.
![](https://cdn.myportfolio.com/285bf9cb-7669-4ad6-a365-38460a3e5481/103e50b0-ad44-435c-b4c9-2c9d0895ff5d_rw_1920.jpg?h=1054ca42ad0f0ac8c884df817eedd9c4)
![](https://cdn.myportfolio.com/285bf9cb-7669-4ad6-a365-38460a3e5481/179262ae-bc48-4071-8c64-b5fe77588937_rw_1920.jpg?h=15f8eacfbc2f4d9385d01bc44cd4c768)

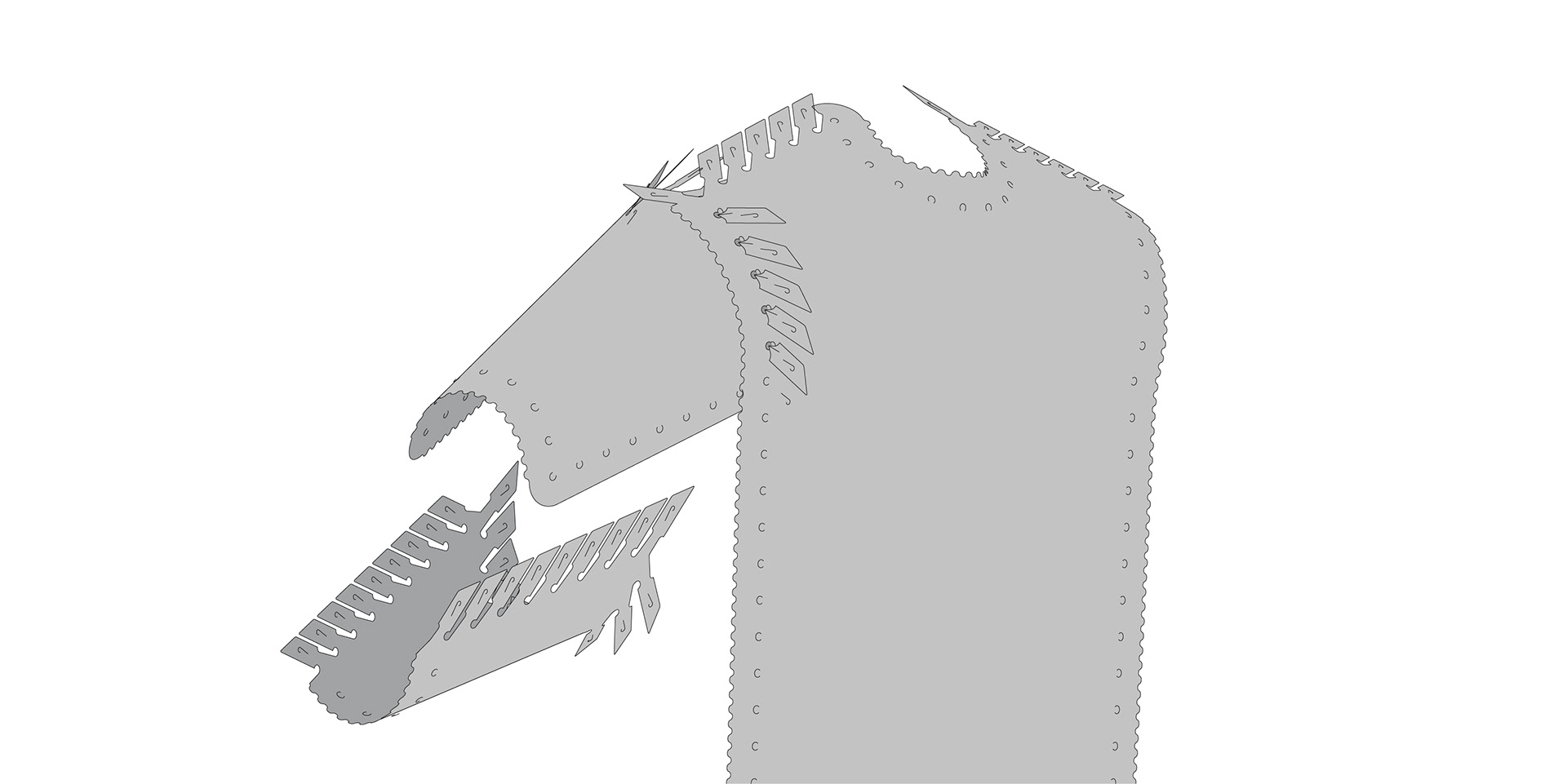

Larger compositions of assembly steps can be derived automatically from a curve network.
![](https://cdn.myportfolio.com/285bf9cb-7669-4ad6-a365-38460a3e5481/2e0827e7-e48c-4bca-a40d-dbbc3e5752ff_rw_1920.jpg?h=a75150d21d52a15dbe8a34de359e9c1a)
